ITEM DESCRIPTION

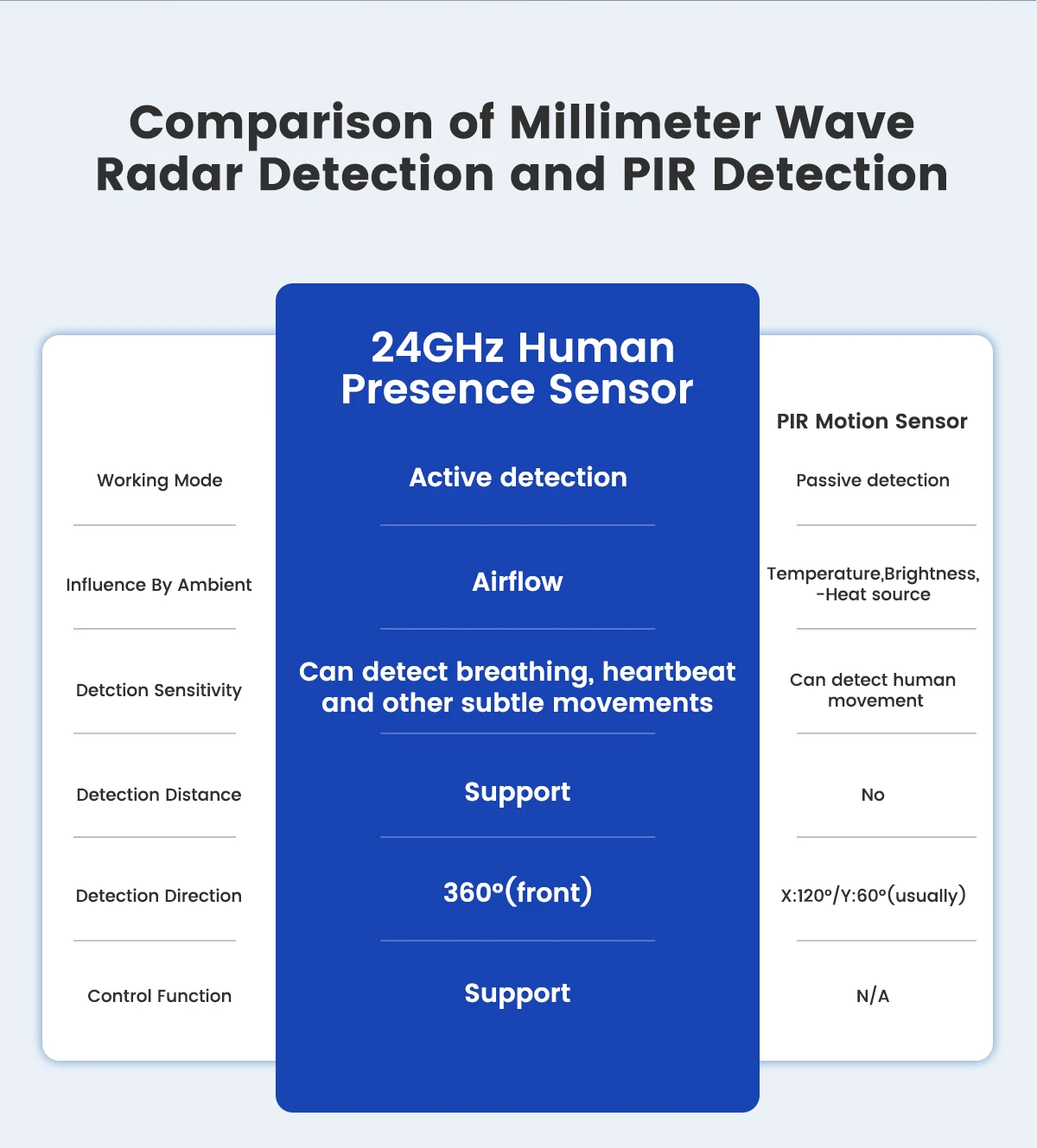

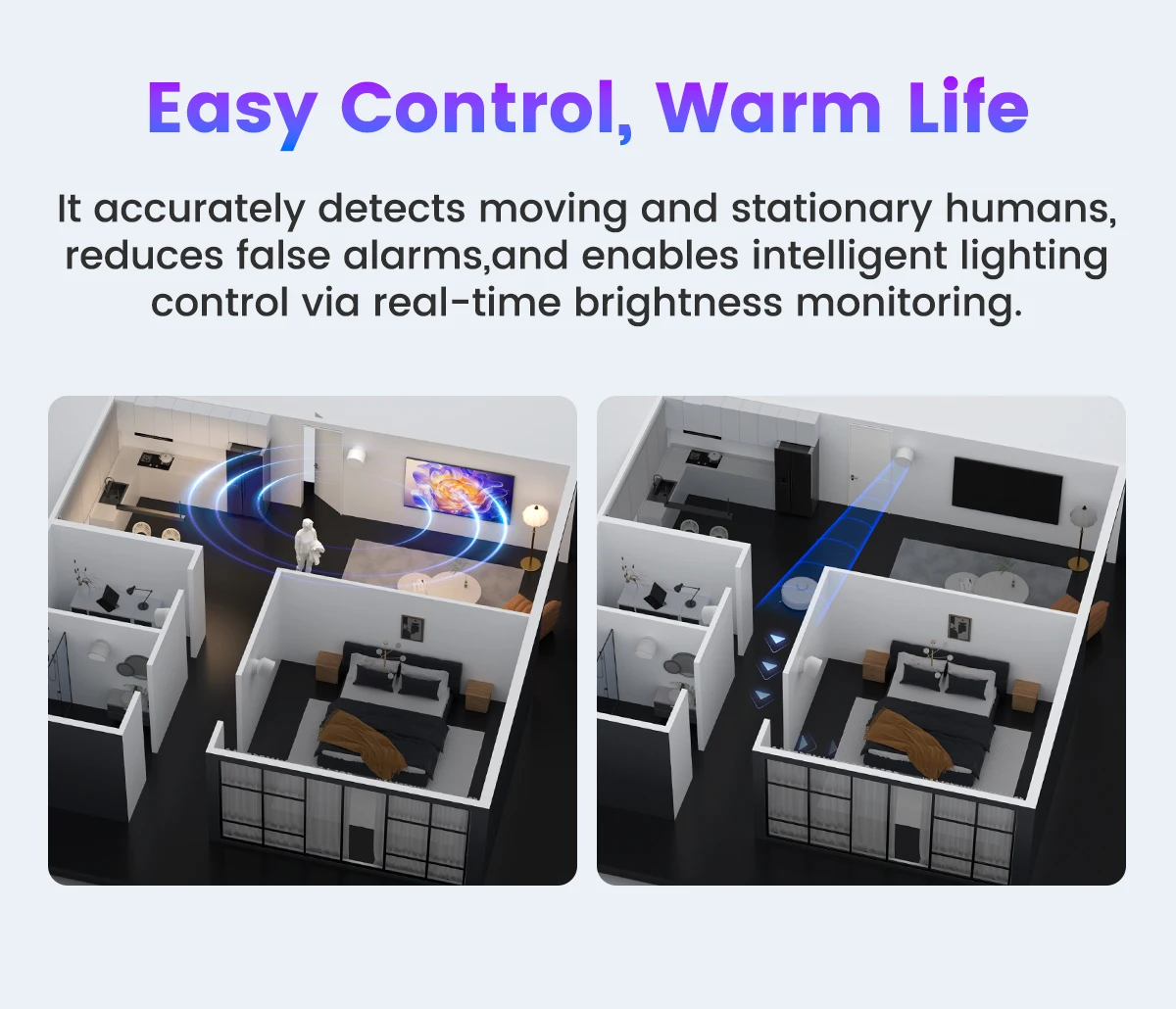

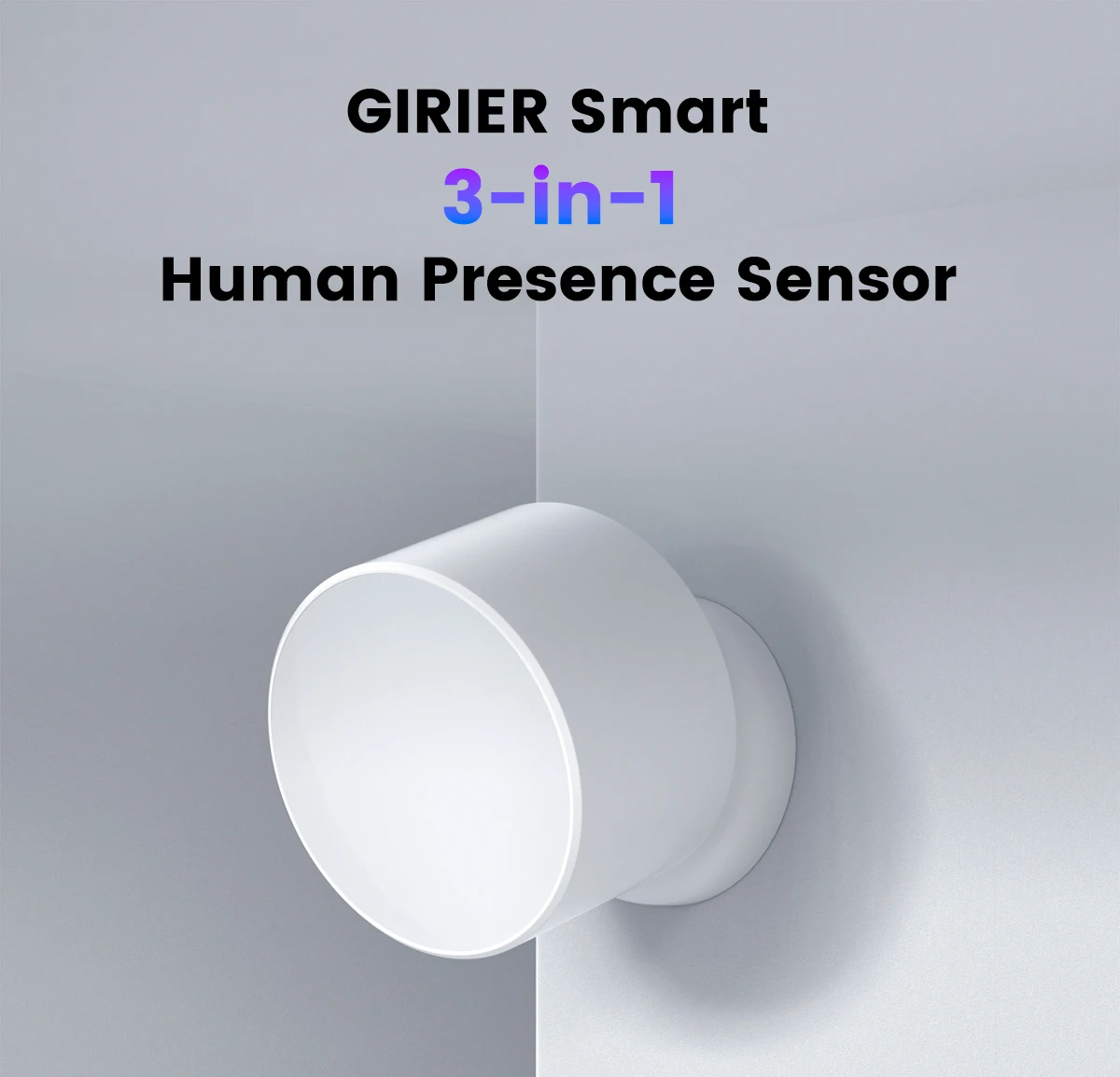

3-in-1 Smart Perception

The "Nerve Center" merging Radar, PIR, and Light sensing. Why install multiple devices when one can handle it all? This sensor integrates Radar, PIR, and Light sensing to support complex automation logic. It evaluates surrounding brightness and human activity together, ensuring lights activate only when the room is truly dark and occupied.

24GHz Precision Presence Detection

A reliable signal hub that orchestrates your entire smart ecosystem. Beyond simple detection, this sensor acts as a vital commander for your Tuya Zigbee network. It translates your presence into automated actions-locking doors, closing gas valves, or arming security when you leave-ensuring your smart devices work in perfect, responsive harmony with your life.

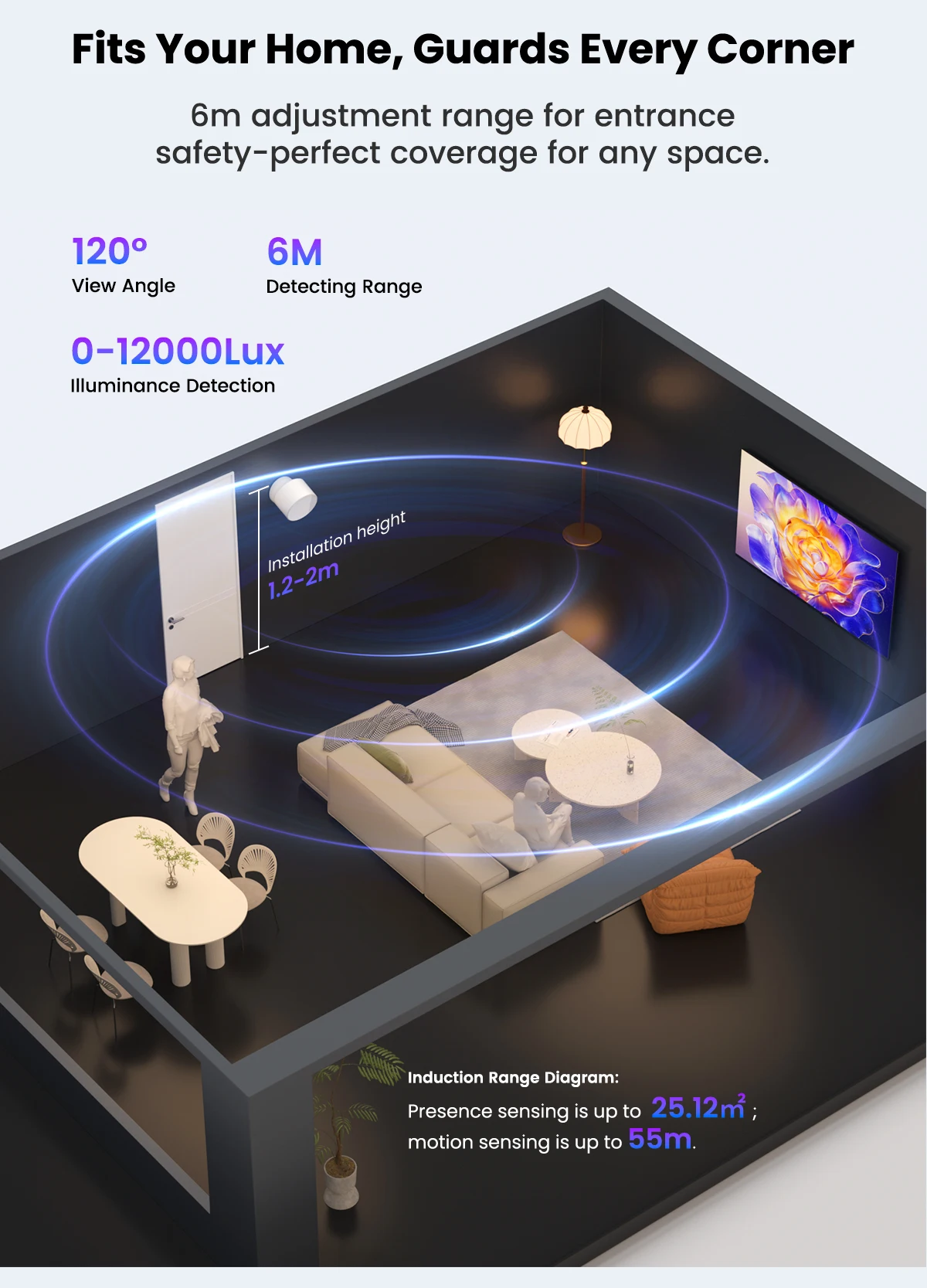

120° Wide-Angle Room Coverage

Monitoring your space with an expansive 6-meter range. A single sensor provides broad coverage for a standard living room or master bedroom. By monitoring a 120° field, it minimizes blind spots and feeds accurate data to your smart system. It captures activity the moment you enter, ensuring your automation triggers are timely.

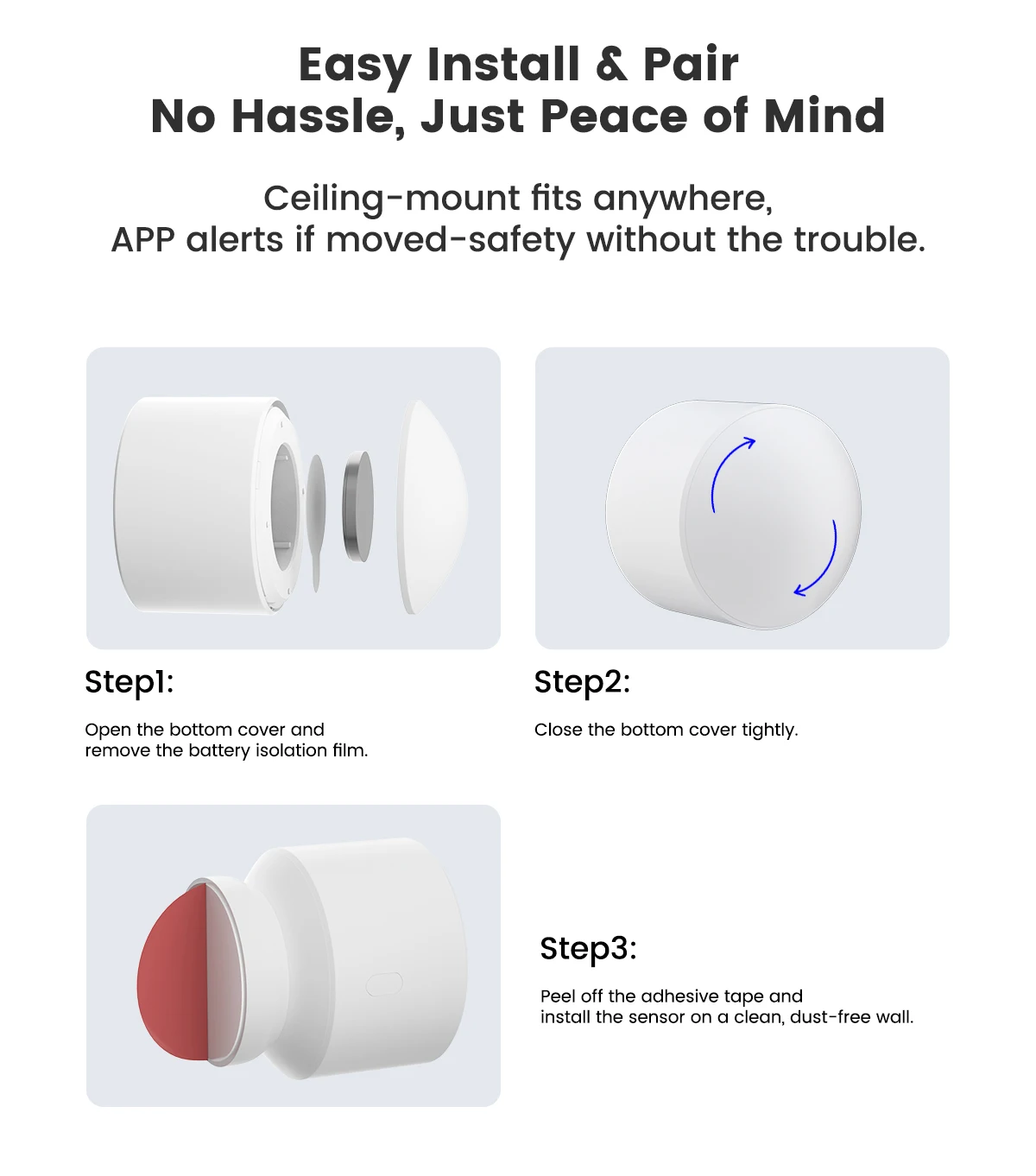

Hassle-Free Wireless Setup

Reliable, low-maintenance performance with total placement freedom. Maintenance shouldn't be a daily chore. Optimized Zigbee 3.0 protocols provide exceptional battery life, while the wire-free design offers total flexibility. Install it on ceilings or shelves without messy cables, providing a consistent, low-power guardian that keeps your smart home running without frequent battery swaps.

1s to 600s Customizable Delay

Adjustable settings to minimize false triggers and waste. Tailor the response time to match the unique rhythm of every room. Set a short delay for hallways to conserve energy, or a longer duration for bathrooms to keep fans running. This precision helps the sensor ignore swaying curtains and focus on real human presence.

Whole-Home Intelligent Linkage

Bridging your daily movements with your entire ecosystem. As a vital node in the Tuya ecosystem, this device converts your activity into instant commands. Imagine your desk lamp adjusting as you sit down, or the system locking doors the moment you leave. It coordinates multiple devices to work in automated harmony with your routines.

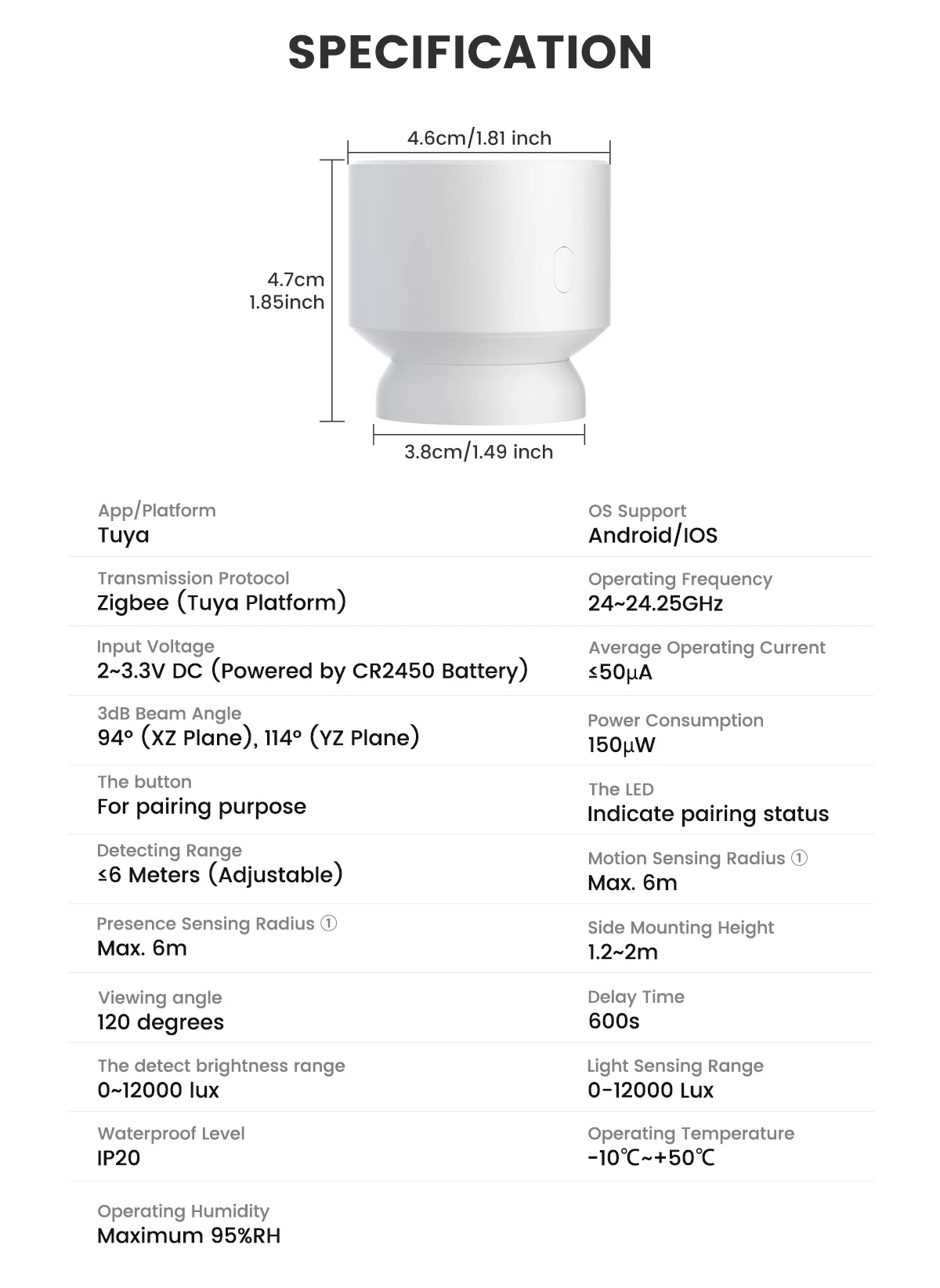

SPECIFICATION

Transmission Protocol: ZigBee
Operating Frequency: 2.4~2.425GHz
Input Voltage: 2~3.3V DC (Powered by CR2450 Battery)
Average Operating Current: ≤50μA
3dB Beam Angle: 94° (XZ Plane), 114° (YZ Plane)
Power Consumption: 150μW
The button: For pairing purpose
The LED: Indicate pairing status
Detecting Range: ≤6 Meters (Adjustable)
Motion Sensing Radius: Max. 6m
Presence Sensing Radius: Max. 6m
Side Mounting Height: 1.2~2m
Viewing angle: 120 degrees
Delay Time: 10~600s
The detect brightness range: 0~12000 lux
Light Sensing Range: 0-12000 Lux
Waterproof Level: IP20
Operating Temperature: -10℃~+50℃
Operating Humidity: Maximum 95%RH
APP: Tuya Smart; Smart Life
