SPECIFICATIONS
Brand Name: NONE
Certification: CE
Choice: yes
Detection Angle: 120
Detection Range: 5M
High-concerned chemical: none
Keywords 1: Sensor Switch
Keywords 2: Human Motion Sensor Detector
Origin: Mainland China
Smart home platform: Other
semi_Choice: yes

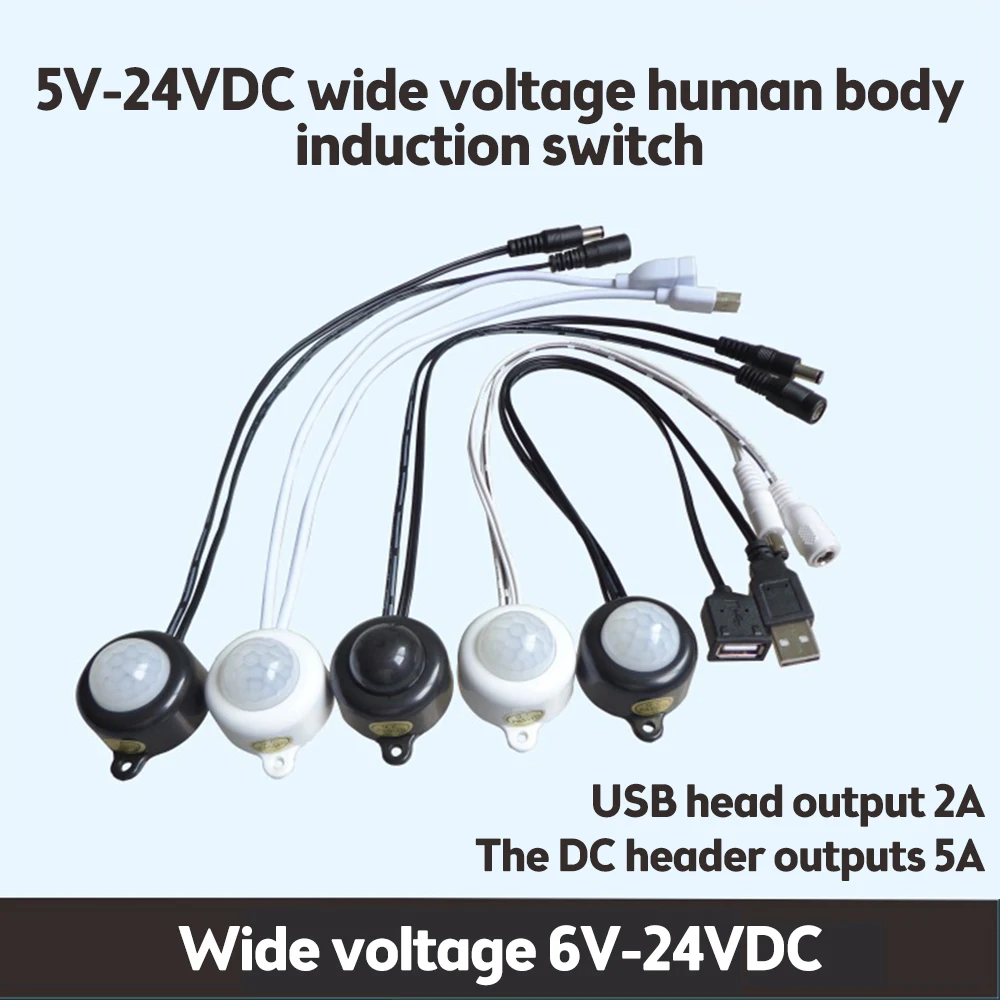

USB PIR Motion Sensor Switch 5A DC 5-24V Body Infrared Intelligent Sensing Detector Switch for LED Strip Light Automatic
Description:
1.100% brand new and high-quality
2.Sensing range (3-5m)
3.Application field: Used in corridors, corridors, bathrooms, basements, warehouses, garages and other places, automatic ventilation and exhaust fans and other electrical appliances 4. Automatic control and other functions
5.Delayed automatic shutdown and other functions
6.The product is compact, low in consumption, and has good sensitivity
Parameters:
Product type: Infrared motion sensing switch
Product interface: DC head, 5.5 * 2 1 Specification
Function description: Human infrared sensing module, wide voltage, output voltage is the same as the input voltage,
Working voltage: 6V -24VDC (wide voltage)
Working temperature: -20 ° C~+50 ° C
Static current:<50uA
Output current: 5A
Trigger mode flow: continuous trigger
Output mode: inductive output

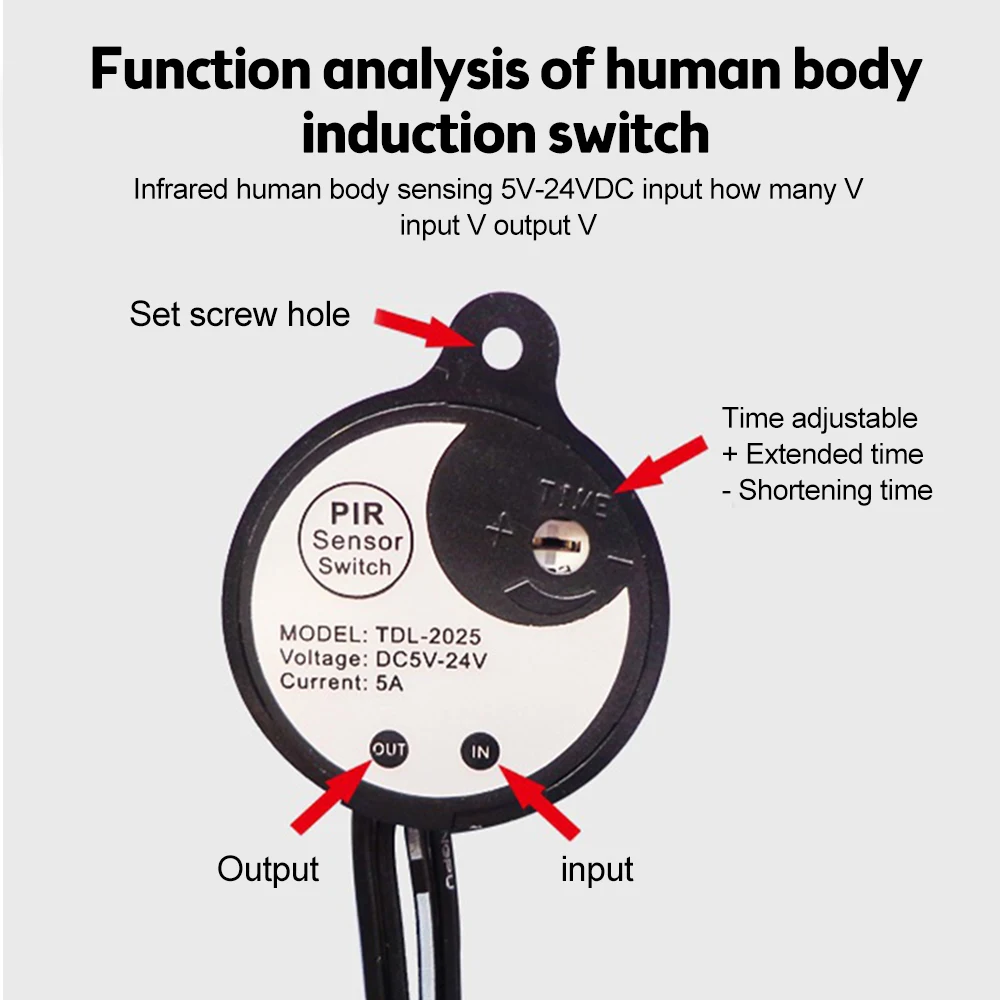

Delay range: Factory set to 18S (adjustable from 18 to 350 seconds)
Induction method: passive
Sensing angle: 120 degree cone angle
Sensing distance: 5-7 meters
Load power: 5V/25W 12V/60W 24V/120W

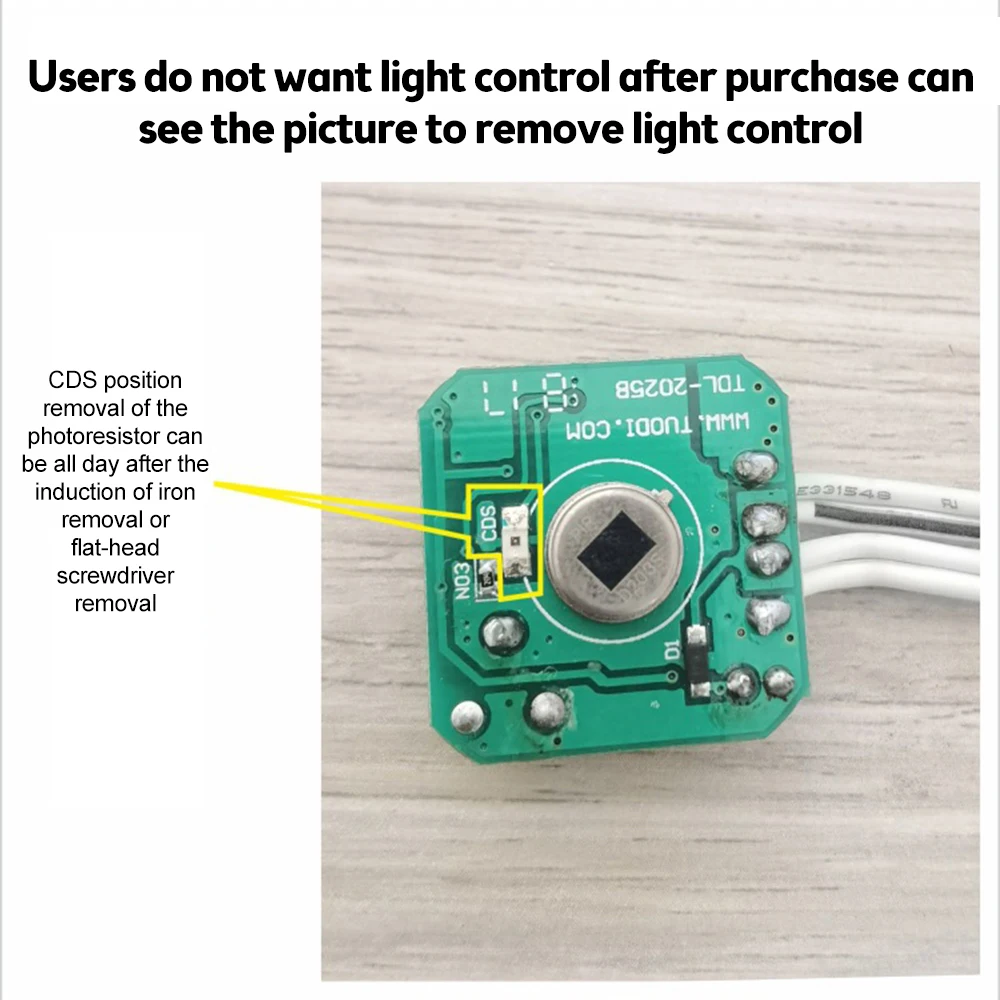

Light control induction: with light control (black lens without light control)
Induction time: 15 seconds (customizable from 2 to 360 seconds)
Product size: 43mmX21mm
Product line length: 300mm (including controller but not probe)
Mobile phone charger computer host (not available with power bank)
Product interface: USB head
Working voltage: 5V -24VDC (wide voltage)
Output current: 2A
Package include:
Human body sensing switch X1
| Color |
Type A, Type C, Type B, Type E, Type D, Type F |
|---|
